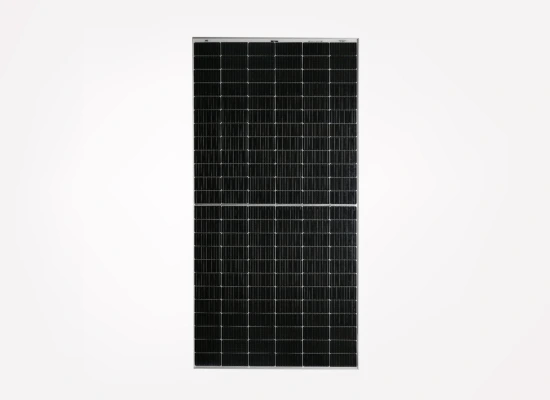

Orient X-Press 540W 24V

Orient X-Press 540W 24V

Description :

Orient’s 540W Mono PERC Half-Cut Solar Panels are proudly manufactured in India using premium materials and 144 advanced half-cut Mono PERC cells, engineered to deliver exceptional efficiency and energy output. The half-cut cell technology enhances overall performance by reducing power loss and improving low-light efficiency. These panels are available in both DCR and Non-DCR variants and are perfectly suited for a wide range of applications—including residential rooftops, commercial buildings, industrial facilities, large-scale utility projects, and government-subsidized schemes such as PM-KUSUM and PM Surya Ghar Muft Bijli Yojana.

Request a Quote

ABOUT 540W MONO PERC HALF CUT SOLAR PANELS


  • High Power Output: Delivers 540 watts, ideal for meeting energy demands of residential and commercial applications.
  • High Efficient 144 PERC Cells: Equipped with 144 M10-sized Mono PERC cells for superior efficiency and energy conversion.
  • M10 Cell Size for Lower LCOE: Uses M10-sized cells to reduce the Levelized Cost of Energy (LCOE), optimizing cost-efficiency.
  • Multi-Busbar (10BB) Technology: Features 10BB technology to enhance sunlight absorption and reduce internal cell resistance.
  • Half-Cut Design: Utilizes half-cut solar cells for improved performance, lower energy loss, and better light absorption.
  • Positive Power Tolerance: Ensures only positive power output tolerance, guaranteeing reliable energy production.
  • Durable Construction: Built with a strong aluminum frame for enhanced durability and resistance to harsh weather conditions.
  • PID Resistant: Offers protection against Potential Induced Degradation (PID) for long-term performance reliability.
  • Excellent Partial Shade Performance: The halfcut design maintains high efficiency even in partial shade, ensuring consistent power output.
  • DCR and Non-DCR Options: Available in Domestic Content Requirement (DCR) and Non-DCR variants to meet diverse market needs.

ELECTRICAL CHARACTERISTICS AT STC


Maximum Power Pmax (Wp)
540

Maximum Voltage Vmpp (V)
41.64

Maximum Current Impp (A)
12.97

Open Circuit Voltage Voc (V)
49.60

Short Circuit Current Isc (A)
13.86

Module Efficiency(%)
20.92


PV MODULE SPECIFICATIONS


Model Number
OrientXP540MF

Cells
144 Half Cut 10BB M10 Cells

Nominal Voltage
24 Volts

Product Weight
30 Kgs

Product Dimensions
2278 mm x 1133 mm x 35 mm

Manufacturer Warranty
10 Years

Performance Warranty
30 Years

Download datasheet

Request A Quote

Talk About How We Can Help You Reduce Your Energy

Costs and successfully manage your carbon emissions with investment free solar technologies.

QUESTIONS & ANSWERS

Frequently Asked Question

What is the Maximum power output of the Orient 540 watt solar panel? ▾
The Orient 540 watt solar panel delivers a robust 540 watts, utilizing 144 Mono PERC Halfcut Solar Panels for high-efficiency energy conversion, ideal for solar PV modules in various applications.The output depends on various other factors like solar irradiance, ambient temperature etc.
How much is the 540 Watt solar panel price in India? ▾
The 540 Watt solar panel price for the Orient Mono PERC Halfcut Solar Panels typically ranges from ₹22,000 to ₹26,000, depending on DCR Solar Panels eligibility and subsidies under PM Surya Ghar Muft Bijli Yojana.
Are the Orient solar PV modules eligible for PM Surya Ghar Muft Bijli Yojana? ▾
Yes, the Orient 540 watt solar panel has DCR Variant that qualifies for PM Surya Ghar Muft Bijli Yojana and PM KUSUM yojana offering up to 40% subsidies for rooftop solar installations up to 3 kW.
Can the 540 watt solar panel power Solar Water Pumps? ▾
Absolutely, the Orient 540 watt solar panel is designed to efficiently power Solar Water Pumps, making it a great fit for agricultural needs under PM KUSUM Yojana with its 24V configuration.
What makes Orient 540 watt Halfcut Solar Panels unique? ▾
The Halfcut technology in the Orient solar panels features 144 Mono PERC cells with 10 busbars, reducing internal resistance and improving performance in partial shade, enhancing the efficiency of solar PV modules.
How does PM KUSUM Yojana affect the 540 Watt solar panel price? ▾
PM KUSUM Yojana offers 30–50% subsidies, significantly lowering the 540 Watt DCR Solar Panels used in Solar Water Pumps and grid-connected agricultural solar systems.
Are these solar PV modules durable for extreme weather? ▾
The Orient 540 watt solar PV Modules, with its strong aluminum frame, is built to withstand high winds and snow, ensuring reliability for solar PV modules in harsh conditions.
How do Orient 540 Watt DCR Solar Panels benefit in PM Surya Ghar Muft Bijli Yojana solar projects ? ▾
DCR Solar Panels, like the Orient 540 watt solar panel, comply with domestic manufacturing rules, making them eligible for higher subsidies under PM Surya Ghar Muft Bijli Yojana for rooftop solar.
What is the efficiency of the Orient Halfcut Solar Panels? ▾
The Orient 540 watt Halfcut Solar Panels can achieve up to 21% efficiency, thanks to Mono PERC technology, making these solar PV modules highly effective for energy production.
Can the 540 Watt solar panel price be offset by government schemes? ▾
Yes, the 540 Watt solar panel price is reduced through subsidies from PM Surya Ghar Muft Bijli Yojana and PM KUSUM Yojana, especially for DCR Solar Panels used in solar projects.
Are these solar PV modules suitable for off-grid Solar Water Pumps? ▾
The Orient 540 watt solar panel is ideal for off-grid Solar Water Pumps, providing reliable 24V power for irrigation, supported by PM KUSUM Yojana for rural applications.
How do Halfcut Solar Panels improve performance? ▾
Halfcut Solar Panels in the Orient model split 144 cells to reduce energy loss and enhance performance in low-light conditions, making these solar PV modules highly efficient.
What factors influence the 540 Watt solar panel price? ▾
The 540 Watt solar panel price depends on DCR Solar Panels compliance, installation costs, and subsidies from schemes like PM Surya Ghar Muft Bijli Yojana, typically ranging from ₹22,000–₹26,000. It also depends on Quantity and location, Additionally on variants like monofacial or bifacial or DCR.
Can the Orient 540 watt solar panel support commercial installations? ▾
Yes, the Orient 540 watt solar panel, with its Halfcut Solar Panels design, is perfect for commercial solar PV modules, offering high power output and eligibility for PM Surya Ghar Muft Bijli Yojana.
How does PM KUSUM Yojana support Solar Water Pumps with this panel? ▾
PM KUSUM Yojana provides subsidies for Solar Water Pumps powered by the Orient 540 watt solar panel, especially DCR Solar Panels, reducing costs for farmers and promoting sustainable irrigation.
